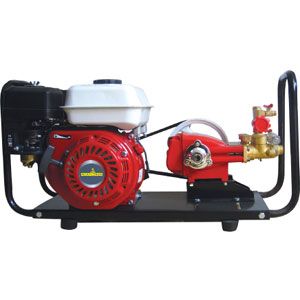

168F-TF-25A

Model: 168F-TF25A
Pistons*Diameter*Stroke(mm): 3*22*16
Spray Capacity(L/min): 14-22
Working Pressure(kg/cm²): 20-45
Speed(rpm): 800-1200
Engine Mode: 168F
Max.output(hp): 5.5
Engine Type: 4-stroke 25o tilt single-cylinder with air-cooled
Bore*Stroke: 68mm*45mm
Displacement: 163ml
Max.Torque: 10.N.M/1800rpm
Ignition S ystem: Non-Contact
transistorized ignition(TCI)
Start Model: Manual
Gross Weight: 25kgs
Dimension(cm): 75*27.5*38.5
Spare parts: 30m hose, 1 spray gun
